Full Automatic PVC Edge Banding Machine for MDF Edge Bander Trimming Machine
USD 1600,00 – 2000,00
/ piece
Цена зависит от количества и характеристик
| Мин. кол. | 1 piece |
| Наличие | 0 piece |
| Категория | Machinery |
Торговая гарантия
Своевременная доставка
Образец доступен
Сертифицированный поставщик
Описание товара

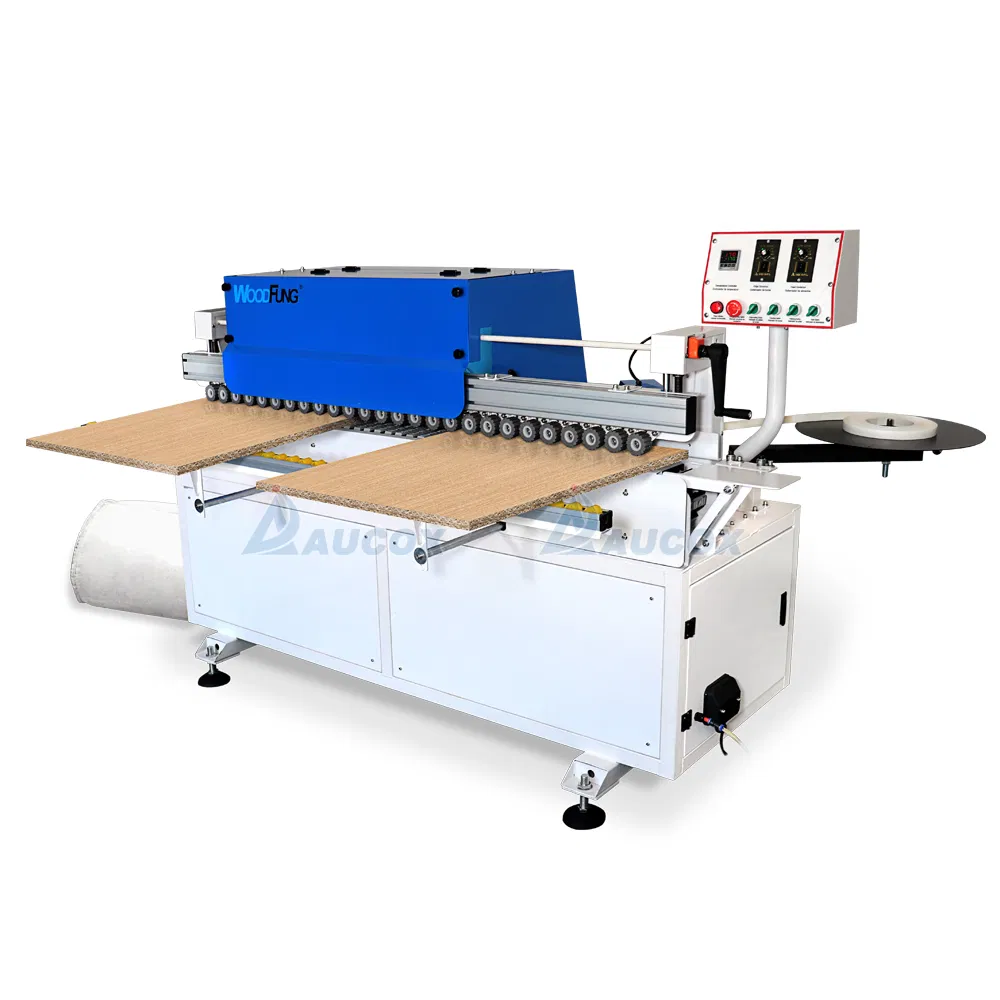

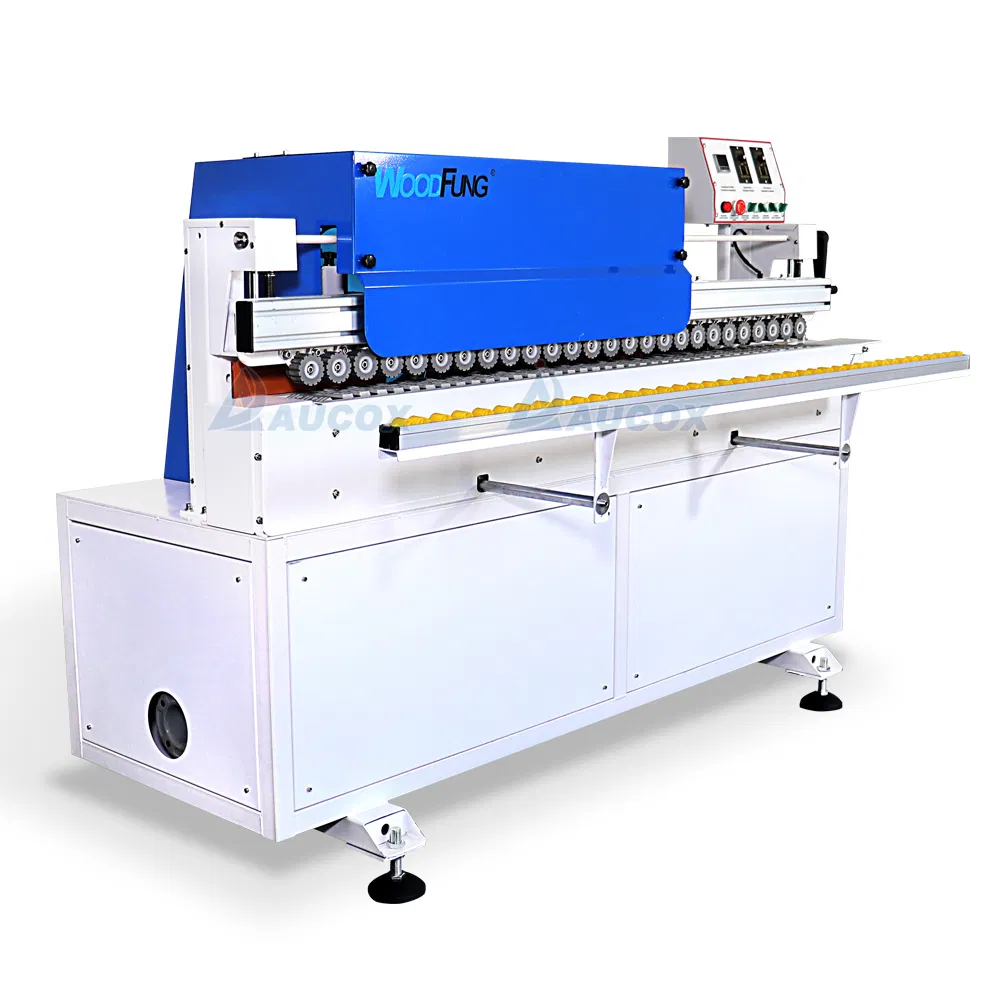

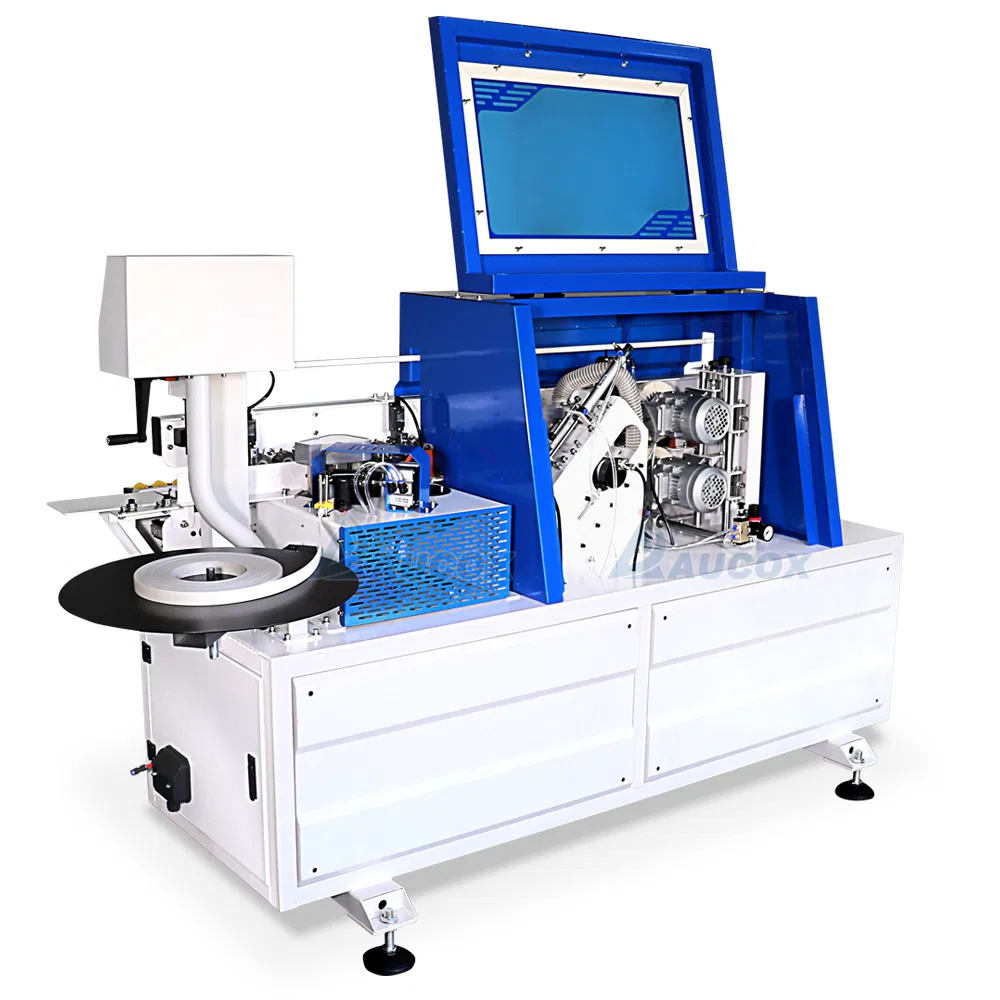

This woodworking machinery is a full automatic PVC edge banding machine designed for MDF panels. It performs gluing, edge banding, end trimming, scraping, and buffing with a semiautomatic straight-line operation. Suitable for panel thicknesses of 10-60mm and edge thicknesses of 0.4-3mm, it is CE certified and comes with a 15-month warranty.
Технические характеристики
| Model NO. | WF50D |
| Warranty | 15months |
| Function | Gluing, Edge Banding, End Trimming, Scraping, Buffing |
| Type | Straight Line |
| Edging thickness | 0.4-3mm |
| Automatic Grade | Semiautomatic |
| Panel Feeding Speed | 0-14m/Min |
| Certification | CE |
| Panel Thinkness | 10-60mm |
| Min.length panel | 120mm |
| Min.width panel | 15~50mm |
| Manufacturing Principles | Glue Tank Underneath |
| Customized | Non-Customized |
| Voltage | 380V or 220V |
| Power | 4900W |
| Motot Power | Polishing 400W/Trimmer 1600W |
| Heating Power | 800W |
| Gluing for | Straight |
| Trimming for | Straight Only |
| Polishing for | Straight |
| Pressure | <6kg/Cm Square |
| Transport Package | Plywood |
| Specification | 2250x650x1250mm |
| Trademark | Woodfung |
| Origin | China |
| HS Code | 8465940000 |
