Customizable 2.2 Inch MCU Interface Color TFT Display Module
USD 4,00 – 4,50
/ piece
Цена зависит от количества и характеристик
| Мин. кол. | 2 piece |
| Наличие | 0 piece |
| Категория | Electronics |
Торговая гарантия
Своевременная доставка
Образец доступен
Сертифицированный поставщик
15
Лет
98%
Ответ
24h
Ответ
Описание товара

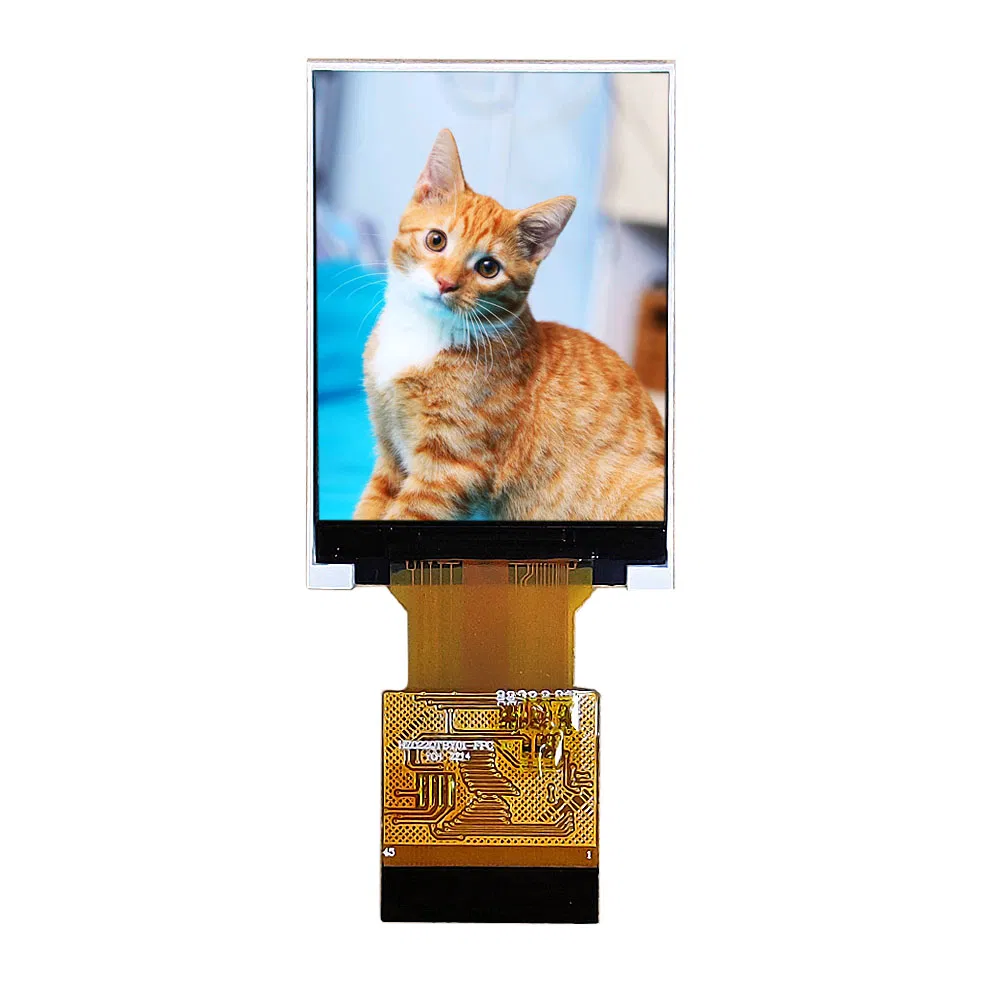

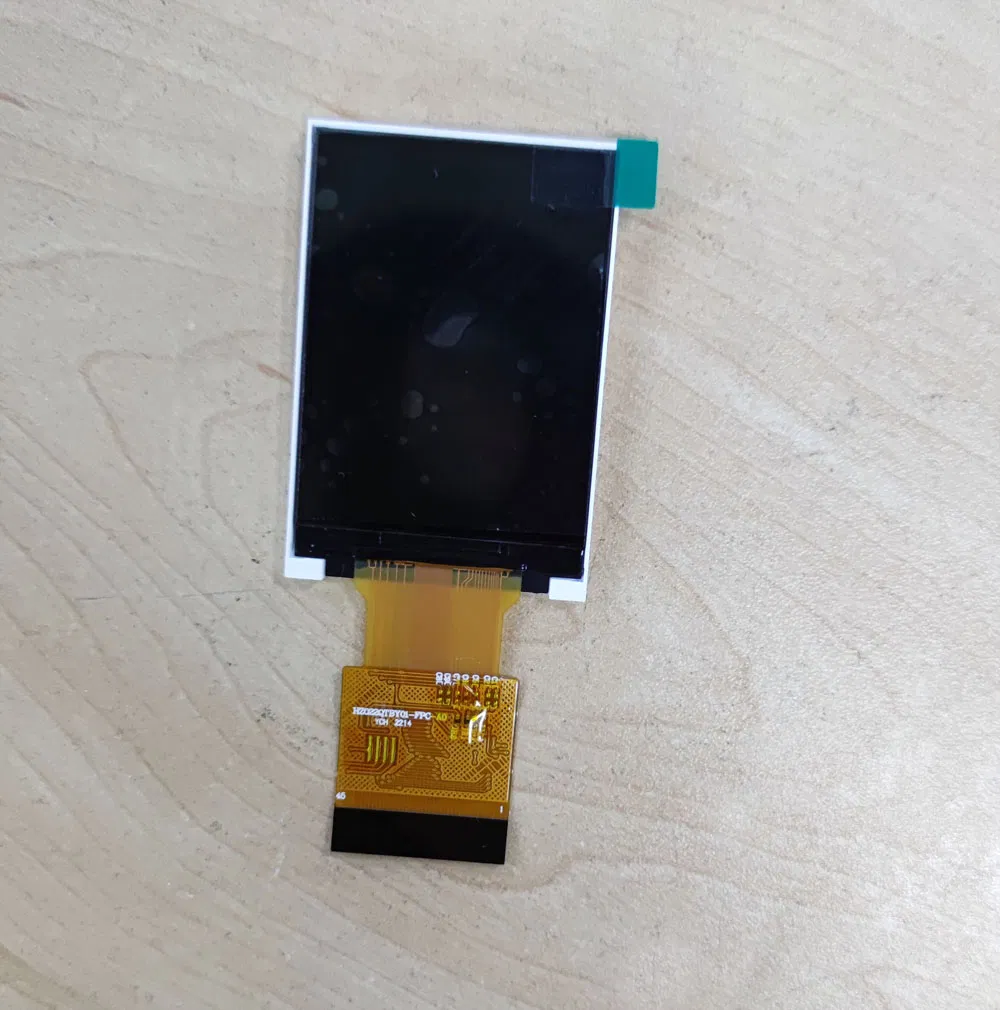

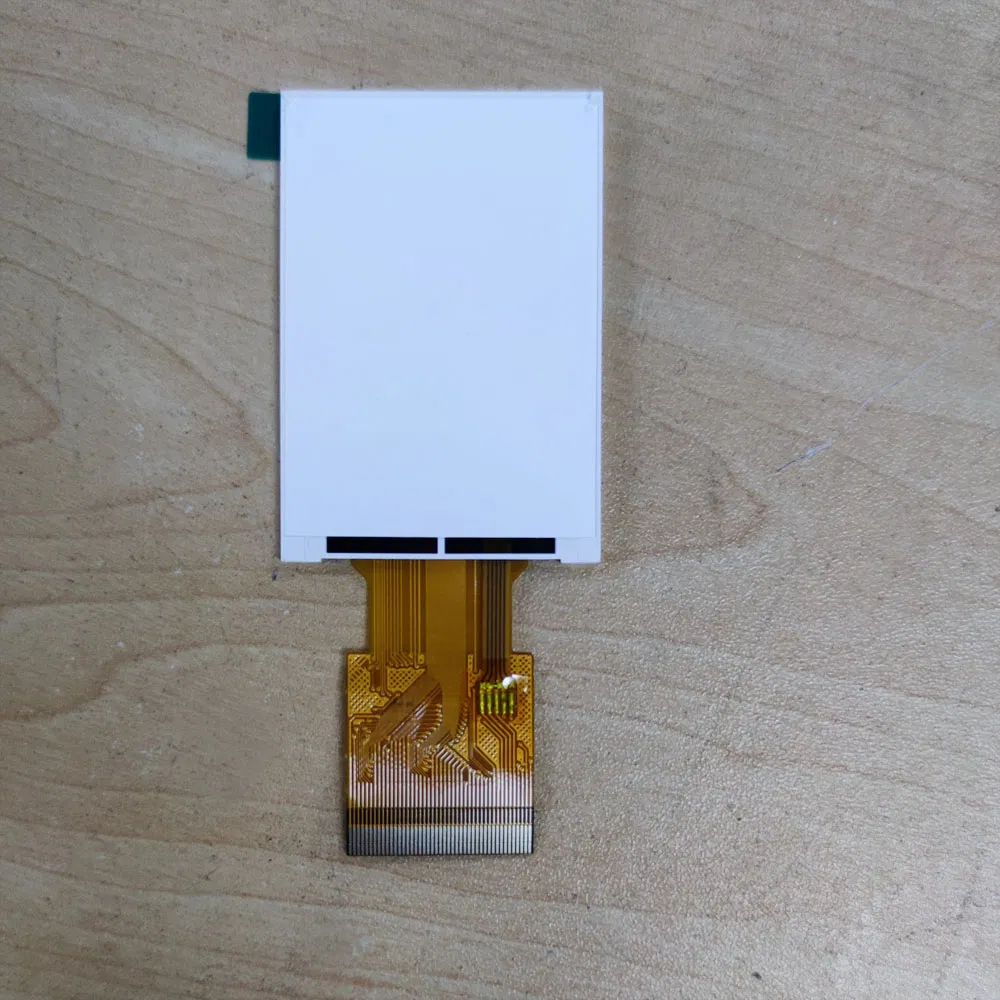

This 2.2-inch TFT LCD display module features a 240x320 resolution and MCU interface, making it ideal for digital products. It includes a white LED backlight with 350 cd/m² brightness and operates within a wide temperature range. The module is customizable and suitable for various embedded applications.
Технические характеристики
| Model NO. | HZ022QTBY |
| Screen Size | 2.2 Inch |
| Optimum Resolution | 240*320 |
| Type | TFT |
| Widescreen | Not Widescreen |
| Interface Type | MCU |
| Active Area | 33.84*45.12mm |
| Resolution | 240*320 |
| Outline Size | 38.5*56.16*2.35 |
| Viewing Direction | 12h |
| Driver IC | St7789 |
| Driving Voltage | 2.8V |
| Backlight | LED*4, White, 350CD/M2 |
| Operating Temp | -20~70 ℃ |
| Storage Temp | -30~80 ℃ |
| Transport Package | Carton |
| Specification | Customized |
| Origin | China |
| HS Code | 852491 |
